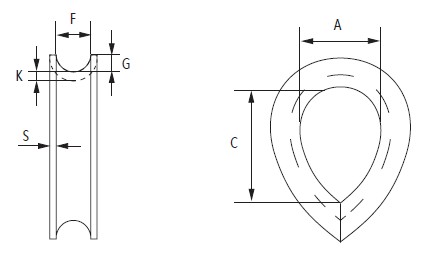

| 规格型号 | 适用钢丝绳径 | A（mm） | C（mm） | F（mm） | G（mm） | K （mm） |
S （mm） |
自重 （kg） |
|||||
| 公制 mm | 英制 in | min | max | min | max | min | max | min | max | ||||
| R178-M6 | 6 | 1/4 | 16 | 18 | 25 | 30 | 7 | 7.6 | 3.5 | 3.8 | 4 | 1.7 | 0.04 |
| R178-M8 | 8 | 5/16 | 21 | 24 | 33 | 40 | 8.8 | 9.5 | 4.4 | 4.7 | 4.5 | 2 | 0.06 |
| R178-M10 | 9-10 | 3/8 | 25 | 30 | 38 | 46 | 11 | 11.4 | 5.5 | 5.7 | 5 | 2 | 0.09 |
| R178-M13 | 12-13 | 1/2 | 33 | 39 | 50 | 66 | 14.3 | 15.2 | 7.15 | 7.6 | 5.5 | 2.5 | 0.17 |
| R178-M14 | 14 | 9/16 | 36 | 42 | 54 | 70 | 15.8 | 17.4 | 7.9 | 8.6 | 5.5 | 2.5 | 0.19 |
| R178-M16 | 16 | 5/8 | 41 | 48 | 62 | 80 | 17.6 | 19 | 8.8 | 9.5 | 8 | 2.5 | 0.28 |
| R178-M18 | 18 | 11/16 | 44 | 51 | 66 | 86 | 19.3 | 20.9 | 9.7 | 10.4 | 8 | 3 | 0.38 |
| R178-M20 | 20 | 3/4 | 50 | 57 | 75 | 96 | 22 | 22.8 | 11 | 11.4 | 9 | 2.7 | 0.46 |
| R178-M22 | 22 | 7/8 | 56 | 66 | 84 | 110 | 24.5 | 26.6 | 12.3 | 13.3 | 10 | 3.5 | 0.68 |
| R178-M24 | 24 | 15/16 | 62 | 72 | 93 | 120 | 26.4 | 28.5 | 13.8 | 14.2 | 10 | 3.5 | 0.82 |
| R178-M26 | 26 | 1 | 66 | 75 | 106 | 126 | 28.6 | 30.4 | 14.3 | 15.2 | 10 | 3.5 | 0.96 |
| R178-M28 | 28 | 1-1/8 | 75 | 87 | 113 | 146 | 32 | 34.2 | 15.95 | 17.1 | 10.5 | 3.5 | 1.3 |
| R178-M32 | 30/32 | 1-1/4 | 90 | 105 | 136 | 160 | 35.5 | 38.1 | 17.6 | 19 | 11 | 3.5 | 1.67 |
| R178-M36 | 36 | 1-3/8 | 100 | 115 | 150 | 176 | 39.6 | 41.9 | 19.8 | 20.9 | 13.5 | 4 | 2.32 |
| R178-M38 | 38 | 1-1/2 | 110 | 125 | 160 | 190 | 42 | 45.7 | 21 | 22.8 | 15 | 4.5 | 3.2 |
| R178-M40 | 40 | 1-5/8 | 115 | 135 | 175 | 206 | 45.5 | 49.5 | 22.8 | 24.7 | 16-17 | 5 | 4.3 |
| R178-M44 | 44 | 1-3/4 | 120 | 140 | 180 | 220 | 50.8 | 53.3 | 24.8 | 26.6 | 19 | 6 | 6.3 |
| R178-M48 | 48 | 1-7/8 | 128 | 148 | 190 | 240 | 53 | 57.1 | 26.4 | 28.5 | 20 | 6 | 7.8 |
| R178-M52 | 52 | 2 | 135 | 153 | 205 | 256 | 58 | 60.9 | 28.6 | 30.4 | 20 | 6 | 8 |
