| 规格型号 | 适用绳径 （mm） |
尺寸（mm） | 包装数量 | 自重 | |||||

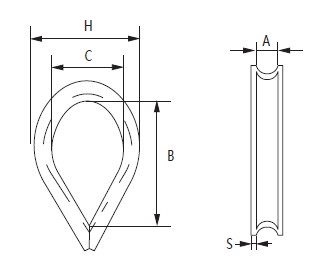

| 304 材质 | 316 材质 | A | B | C | H | S | 只 | kg | |
| R119-M2 | R120-M2 | 2 | 3 | 9 | 7.7 | 11.5 | 0.8 | 100 | 0.0015 |
| R119-M3 | R120-M3 | 3 | 4.4 | 14 | 9.9 | 16 | 0.8 | 100 | 0.002 |
| R119-M4 | R120-M4 | 4 | 5.3 | 15 | 11.8 | 17 | 0.8 | 100 | 0.0025 |
| R119-M5 | R120-M5 | 5 | 6.4 | 17 | 13.3 | 20 | 1 | 100 | 0.0055 |
| R119-M6 | R120-M6 | 6 | 7.4 | 21 | 16 | 22 | 1 | 100 | 0.0065 |
| R119-M8 | R120-M8 | 8 | 9 | 30 | 20 | 29 | 1.5 | 100 | 0.0185 |
| R119-M10 | R120-M10 | 10 | 11.8 | 36 | 26 | 37 | 1.5 | 100 | 0.024 |
| R119-M12 | R120-M12 | 12 | 14 | 40 | 26 | 42 | 2 | 50 | 0.04 |
| R119-M14 | R120-M14 | 14 | 15 | 50 | 33 | 50 | 1.9 | 50 | 0.06 |
| R119-M16 | R120-M16 | 16 | 17 | 54 | 39 | 55 | 1.9 | 20 | 0.077 |
| R119-M18 | R120-M18 | 18 | 19.7 | 54 | 40 | 61 | 2.5 | 10 | 0.127 |
| R119-M20 | R120-M20 | 20 | 21.8 | 72 | 43 | 65 | 2.5 | 10 | 0.143 |
| R119-M22 | R120-M22 | 22 | 23.8 | 77 | 43 | 67 | 2.5 | 5 | 0.172 |
| R119-M24 | R120-M24 | 24 | 25.8 | 77 | 49 | 73 | 2.5 | 5 | 0.198 |
| R119-M26 | R120-M26 | 26 | 27.8 | 79 | 53 | 80 | 2.5 | 5 | 0.2795 |
