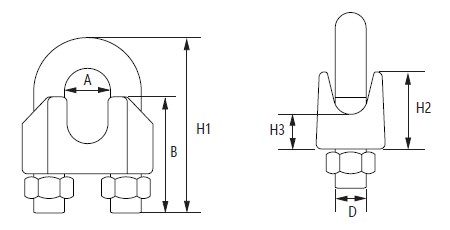

| 规格型号 | 尺寸（mm） | 自重 | ||||||
| 304 材质 | 316 材质 | A | B | D | H1 | H2 | H3 | Kg |
| R116-M2 | R117-M2 | 4.37 | 9.89 | 3 | 17.5 | 9.15 | 4.26 | 0.007 |
| R116-M3 | R117-M3 | 5.53 | 10.56 | 4 | 20 | 9.67 | 4.46 | 0.011 |
| R116-M4 | R117-M4 | 6.49 | 11.65 | 4 | 21.6 | 9.85 | 5.01 | 0.012 |
| R116-M5 | R117-M5 | 7.25 | 16.12 | 5 | 27.5 | 10.41 | 5.95 | 0.015 |
| R116-M6 | R117-M6 | 8.12 | 17.62 | 6 | 32.5 | 11.82 | 5.95 | 0.029 |
| R116-M8 | R117-M8 | 9.54 | 20.02 | 6 | 34 | 15.44 | 5.95 | 0.036 |
| R116-M10 | R117-M10 | 11.24 | 22.71 | 8 | 44.1 | 16.57 | 5.95 | 0.062 |
| R116-M12 | R117-M12 | 15.88 | 29.35 | 10 | 51 | 17.99 | 6.61 | 0.12 |
| R116-M14 | R117-M14 | 16.66 | 29.35 | 10 | 56 | 21.82 | 8.34 | 0.13 |
| R116-M16 | R117-M16 | 18.01 | 29.55 | 12 | 65 | 24.69 | 8.43 | 0.2 |
| R116-M18 | R117-M18 | 20.07 | 29.85 | 12 | 80 | 29.72 | 9.65 | 0.24 |
| R116-M20 | R117-M20 | 22.94 | 32.44 | 12 | 83 | 30.82 | 10.51 | 0.25 |
| R116-M22 | R117-M22 | 24.12 | 32.56 | 12 | 87.3 | 32.44 | 11.87 | 0.35 |
| R116-M24 | R117-M24 | 26.13 | 33.41 | 12 | 76 | 33.76 | 12.87 | 0.37 |
| R116-M26 | R117-M26 | 27.36 | 54.12 | 14 | 108 | 37.29 | 13.44 | 0.53 |
| R116-M30 | R117-M30 | 33.19 | 56.92 | 16 | 110 | 43.19 | 13.44 | 0.66 |
| R116-M32 | R117-M32 | 34.12 | 57.25 | 16 | 112.1 | 44.25 | 14.26 | 0.68 |
