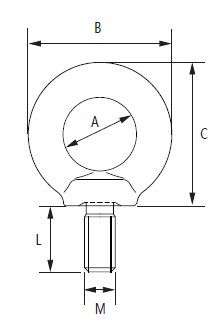

| 规格型号 | 尺寸（mm） | 额载 | 自重 | ||||
| 304 材质 | 316 材质 | A | B | C | L | Kg | Kg |
| R102-M3 | - | 7.3 | 12.9 | 13.9 | 9.5 | 20 | 0.003 |
| R102-M4 | - | 10.4 | 17.8 | 19.2 | 10.8 | 40 | 0.007 |
| R102-M5 | - | 13.6 | 22.4 | 23.7 | 10.8 | 60 | 0.01 |
| R102-M6 | R103-M6 | 16.3 | 27.1 | 29.9 | 12 | 70 | 0.022 |
| R102-M8 | R103-M8 | 20.8 | 35.7 | 35.1 | 14 | 140 | 0.047 |
| R102-M10 | R103-M10 | 25.7 | 42.8 | 44 | 18 | 230 | 0.088 |
| R102-M12 | R103-M12 | 30.3 | 51.1 | 51.5 | 20 | 340 | 0.13 |
| R102-M14 | R103-M14 | 30 | 52.6 | 52 | 20 | 520 | 0.15 |
| R102-M16 | R103-M16 | 37.2 | 59.8 | 60.7 | 20 | 700 | 0.22 |
| R102-M18 | R103-M18 | 39.4 | 65 | 69.4 | 20 | 800 | 0.32 |
| R102-M20 | R103-M20 | 40 | 69 | 71.8 | 30 | 1200 | 0.37 |
| R102-M24 | R103-M24 | 49.7 | 84.5 | 84.6 | 37 | 1800 | 0.63 |
| R102-M27 | - | 52.7 | 85.6 | 84.8 | 41.5 | 2700 | 0.84 |
| R102-M30 | R103-M30 | 54.5 | 102.8 | 102.3 | 45 | 3600 | 1.35 |
| R102-M36 | - | 66.8 | 124 | 124.8 | 48 | 5100 | 2.39 |
| R102-M42 | - | 78.1 | 146.5 | 154 | 63.8 | 6300 | 3.9 |
| R102-M48 | - | 92.2 | 173 | 180 | 67 | 8000 | 6.43 |
