| 规格 | 额载 (T) | 调节范围 L（mm） | 尺寸 (mm) | 自重 | |||||||

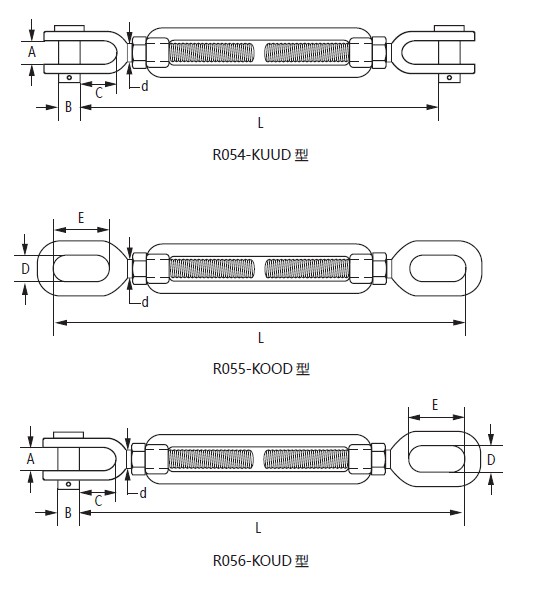

| d | M 级 | P 级 | KUUD 型 | KOOD 型 | KOUD 型 | A | B | C | D | E | Kg |
| M6 | 0.12t | 0.18t | 155-230 | 170-245 | 160-235 | 10 | 6 | 16 | 10 | 19 | 0.2 |
| M8 | 0.25t | 0.4t | 210-325 | 230-345 | 220-335 | 12 | 8 | 20 | 12 | 24 | 0.4 |
| M10 | 0.4t | 0.6t | 230-340 | 255-365 | 240-355 | 14 | 10 | 22 | 14 | 28 | 0.5 |
| M12 | 0.6t | 0.8t | 280-420 | 310-450 | 295-435 | 16 | 12 | 27 | 16 | 34 | 0.9 |
| M14 | 0.9t | 1.2t | 295-435 | 325-465 | 310-450 | 18 | 14 | 30 | 18 | 40 | 1.1 |
| M16 | 1.2t | 1.7t | 335-525 | 390-560 | 375-540 | 22 | 16 | 34 | 22 | 47 | 1.8 |
| M18 | 1.7t | 2.1t | 375-540 | 415-580 | 395-560 | 25 | 18 | 38 | 25 | 55 | 2.3 |
| M20 | 2.1t | 2.7t | 420-605 | 470-655 | 445-630 | 27 | 20 | 41 | 27 | 60 | 3.1 |
| M22 | 2.7t | 3.5t | 445-630 | 495-680 | 470-655 | 30 | 23 | 44 | 30 | 70 | 3.7 |
| M24 | 3.5t | 4.5t | 505-720 | 575-785 | 540-755 | 32 | 26 | 52 | 32 | 80 | 5.8 |
| M27 | 4.5t | 5.5t | 545-755 | 610-820 | 575-790 | 38 | 30 | 61 | 36 | 90 | 6.9 |
| M30 | 6.0t | 7.5t | 635-880 | 700-950 | 665-915 | 44 | 32 | 69 | 40 | 100 | 11.4 |
| M36 | 7.5t | 9.5t | 650-900 | 730-975 | 690-940 | 49 | 38 | 73 | 44 | 105 | 14.1 |
| M39 | 9.5t | 12t | 720-985 | 820-1085 | 770-1035 | 52 | 41 | 78 | 49 | 120 | 21.3 |
| M42 | 11t | 14.5t | 760-1025 | 855-1120 | 810-1075 | 60 | 45 | 86 | 52 | 130 | 24.4 |
| M48 | 14t | 18t | 845-1135 | 940-1230 | 890-1180 | 64 | 50 | 94 | 58 | 140 | 35.9 |
| M56 | 17.5t | 22t | 870-1160 | 970-1260 | 920-1210 | 68 | 57 | 104 | 65 | 150 | 43.8 |
| M60 | 21t | 25t | 940-1250 | 1085-1390 | 1010-1320 | 72 | 61 | 109 | 70 | 170 | 57.2 |
| M64 | 25t | 32t | 975-1280 | 1130-1435 | 1055-1360 | 75 | 65 | 113 | 75 | 180 | 65.8 |
