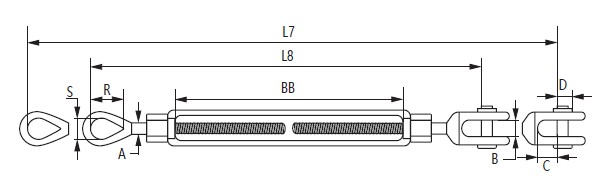

| 规格型号 | 额载 | 尺寸（mm） | 重量 | |||||||
| T | A | B | C | D | S | R | L8 | L7 | kg | |
| R053-OU-1/4×4 | 0.23 | 6.35 | 11.43 | 15.75 | 6.35 | 8.6 | 19.81 | 186.7 | 288.29 | 0.15 |
| R053-OU-5/16×4-1/2 | 0.36 | 7.87 | 12.70 | 22.10 | 6.35 | 11.18 | 23.88 | 221.2 | 348.23 | 0.21 |
| R053-OU-3/8×6 | 0.54 | 9.65 | 13.72 | 22.10 | 7.87 | 13.46 | 28.45 | 274.6 | 426.97 | 0.35 |
| R053-OU-1/2×6 | 1.00 | 12.7 | 13.97 | 26.92 | 9.65 | 18.29 | 36.58 | 311.9 | 464.57 | 0.69 |
| R053-OU-1/2×9 | 1.00 | 12.7 | 13.97 | 26.92 | 9.65 | 18.29 | 36.58 | 388.37 | 616.97 | 0.78 |
| R053-OU-1/2×12 | 1.00 | 12.7 | 13.97 | 26.92 | 9.65 | 18.29 | 36.58 | 464.57 | 769.37 | 0.94 |
| R053-OU-5/8×6 | 1.59 | 16 | 20.83 | 33.27 | 12.70 | 22.35 | 44.45 | 349 | 501.40 | 1.07 |
| R053-OU-5/8×9 | 1.59 | 16 | 20.83 | 33.27 | 12.70 | 22.35 | 44.45 | 425.2 | 653.80 | 1.39 |
| R053-OU-5/8×12 | 1.59 | 16 | 20.83 | 33.27 | 12.70 | 22.35 | 44.45 | 501.4 | 806.20 | 1.72 |
| R053-OU-3/4×6 | 2.36 | 19.05 | 26.16 | 38.10 | 15.75 | 22.35 | 53.09 | 385.83 | 538.23 | 1.82 |
| R053-OU-3/4×9 | 2.36 | 19.05 | 26.16 | 38.10 | 15.75 | 25.4 | 53.09 | 462.03 | 690.63 | 2.16 |
| R053-OU-3/4×12 | 2.36 | 19.05 | 26.16 | 38.10 | 15.75 | 25.4 | 53.09 | 538.23 | 843.03 | 2.43 |
| R053-OU-3/4×18 | 2.36 | 19.05 | 26.16 | 38.10 | 15.75 | 25.4 | 53.09 | 690.63 | 1147.83 | 3.18 |
| R053-OU-7/8×12 | 3.27 | 22.35 | 31.24 | 44.45 | 19.05 | 25.45 | 60.45 | 546.84 | 872.24 | 3.63 |
| R053-OU-7/8×18 | 3.27 | 22.35 | 31.24 | 44.45 | 19.05 | 31.75 | 60.45 | 719.84 | 1177.04 | 4.43 |
| R053-OU-1×6 | 4.54 | 25.4 | 33.27 | 52.32 | 22.35 | 31.75 | 76.2 | 465.84 | 618.24 | 4.05 |
| R053-OU-1×12 | 4.54 | 25.4 | 33.27 | 52.32 | 22.35 | 36.58 | 76.2 | 618.24 | 923.04 | 5.08 |
| R053-OU-1×18 | 4.54 | 25.4 | 33.27 | 52.32 | 22.35 | 36.58 | 76.2 | 768.1 | 1227.84 | 6.04 |
| R053-OU-1×24 | 4.54 | 25.4 | 33.27 | 52.32 | 22.35 | 36.58 | 76.2 | 923.04 | 1532.64 | 7.72 |
| R053-OU-1-1/4×12 | 6.89 | 31.75 | 47.24 | 71.37 | 28.45 | 45.9 | 90.42 | 681.23 | 986.03 | 9.08 |
| R053-OU-1-1/4×18 | 6.89 | 31.75 | 47.24 | 71.37 | 28.45 | 45.9 | 90.42 | 833.63 | 1290.83 | 10.98 |
| R053-OU-1-1/4×24 | 6.89 | 31.75 | 47.24 | 71.37 | 28.45 | 45.97 | 90.42 | 986.03 | 1595.63 | 12.94 |
| R053-OU-1-1/2×12 | 9.71 | 38.1 | 57.15 | 71.37 | 35.05 | 53.85 | 103.12 | 723.9 | 1028.70 | 13.16 |
| R053-OU-1-1/2×18 | 9.71 | 38.1 | 57.15 | 71.37 | 35.05 | 53.85 | 103.12 | 876.3 | 1333.50 | 15.89 |
| R053-OU-1-1/2×24 | 9.71 | 38.1 | 57.15 | 71.37 | 35.05 | 53.85 | 103.12 | 1028.7 | 1638.30 | 17.79 |
| R053-OU-1-3/4×18 | 12.7 | 44.5 | 66.04 | 85.85 | 41.15 | 60.45 | 117.35 | 949.45 | 1406.65 | 24.40 |
| R053-OU-1-3/4×24 | 12.7 | 44.45 | 66.04 | 85.85 | 41.15 | 60.45 | 117.35 | 1101.85 | 1711.45 | 27.55 |
| R053-OU-2×24 | 16.78 | 50.8 | 66.55 | 93.73 | 50.80 | 68.3 | 146 | 1234.95 | 1844.55 | 40.41 |
| R053-OU-2-1/2×24 | 27.22 | 63.5 | 77.72 | 112.78 | 57.15 | 79 | 165 | 1315.72 | 1925.32 | 68.10 |
| R053-OU-2-3/4×24 | 34.02 | 69.85 | 93.47 | 106.43 | 69.85 | 82.55 | 177.8 | 1368.55 | 1978.15 | 83.08 |
