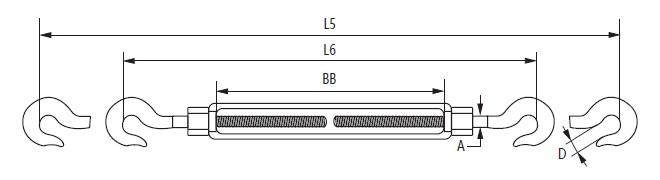

| 规格型号 | 额载 | 尺寸（mm） | 自重 | |||
| T | A | L5 | L6 | D | kg | |
| R052-CC-1/4×4 | 0.23 | 6.35 | 282.4 | 180.8 | 11.43 | 0.14 |
| R052-CC-5/16×4-1/2 | 0.36 | 7.87 | 325.37 | 211.1 | 12.7 | 0.21 |
| R052-CC-3/8×6 | 0.54 | 9.65 | 419.1 | 266.7 | 14.22 | 0.35 |
| R052-CC-1/2×6 | 1 | 12.7 | 478.03 | 300.23 | 16.76 | 0.73 |
| R052-CC-1/2×9 | 1 | 12.7 | 630.43 | 376.43 | 16.76 | 0.83 |
| R052-CC-1/2×12 | 1 | 12.7 | 782.83 | 452.63 | 16.76 | 1.03 |
| R052-CC-5/8×6 | 1.59 | 16 | 520.7 | 336.55 | 22.28 | 1.25 |
| R052-CC-5/8×9 | 1.59 | 16 | 673.1 | 412.7 | 22.28 | 1.53 |
| R052-CC-5/8×12 | 1.59 | 16 | 825.5 | 488.9 | 22.28 | 1.59 |
| R052-CC-3/4×6 | 2.36 | 19.05 | 568.45 | 377.9 | 24.9 | 1.76 |
| R052-CC-3/4×9 | 2.36 | 19.05 | 720.85 | 454.15 | 24.9 | 2.39 |
| R052-CC-3/4×12 | 2.36 | 19.05 | 873.25 | 530.35 | 24.9 | 2.46 |
| R052-CC-3/4×18 | 2.36 | 19.05 | 1178.1 | 682.75 | 24.9 | 3.68 |
| R052-CC-7/8×12 | 3.27 | 22.35 | 914.4 | 565.15 | 28.7 | 3.67 |
| R052-CC-7/8×18 | 3.27 | 22.35 | 1219 | 717.55 | 28.7 | 4.51 |
| R052-CC-1×6 | 4.54 | 25.4 | 651 | 447.8 | 31.79 | 4.23 |
| R052-CC-1×12 | 4.54 | 25.4 | 955.8 | 600.2 | 31.79 | 5.41 |
| R052-CC-1×18 | 4.54 | 25.4 | 1260 | 752.6 | 31.79 | 6.35 |
| R052-CC-1×24 | 4.54 | 25.4 | 1565.4 | 905 | 31.79 | 7.82 |
| R052-CC-1-1/4×12 | 6.89 | 31.75 | 1027.2 | 658 | 38.1 | 9.33 |
| R052-CC-1-1/4×18 | 6.89 | 31.75 | 1332 | 811 | 38.1 | 10.43 |
| R052-CC-1-1/4×24 | 6.89 | 31.75 | 1636 | 936.8 | 38.1 | 12.25 |
| R052-CC-1-1/2×12 | 9.71 | 38.1 | 1116 | 735.08 | 47.75 | 12.47 |
| R052-CC-1-1/2×18 | 9.71 | 38.1 | 1421.38 | 887.4 | 47.75 | 14.06 |
| R052-CC-1-1/2×24 | 9.71 | 38.1 | 1725 | 1039 | 47.35 | 17.01 |
