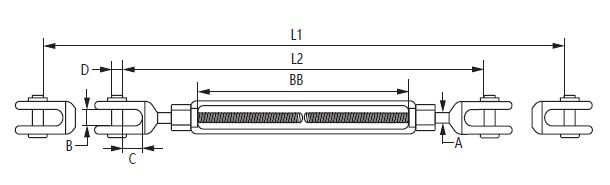

| 规格型号 | 额载 | 尺寸（mm） | 自重 | ||||||
| T | A | B | C | L1 | L2 | D | BB | kg | |
| R050-UU-1/4×4 | 0.23 | 6.35 | 11.43 | 15.75 | 276.86 | 175.26 | 6.35 | 101.6 | 0.16 |
| R050-UU-5/16×4-1/2 | 0.36 | 7.87 | 12.70 | 22.10 | 313.94 | 212.34 | 6.35 | 114.3 | 0.24 |
| R050-UU-3/8×6 | 0.54 | 9.65 | 13.72 | 22.10 | 409.96 | 257.56 | 7.87 | 152.4 | 0.37 |
| R050-UU-1/2×6 | 1 | 12.70 | 13.97 | 26.92 | 469.90 | 292.10 | 9.65 | 152.4 | 0.71 |
| R050-UU-1/2×9 | 1 | 12.70 | 13.97 | 26.92 | 622.30 | 368.30 | 9.65 | 228.6 | 0.79 |
| R050-UU-1/2×12 | 1 | 12.70 | 13.97 | 26.92 | 774.70 | 444.50 | 9.65 | 304.8 | 1.09 |
| R050-UU-5/8×6 | 1.59 | 16.00 | 20.83 | 33.27 | 509.27 | 325.12 | 12.70 | 152.4 | 1.23 |
| R050-UU-5/8×9 | 1.59 | 16.00 | 20.83 | 33.27 | 661.67 | 401.32 | 12.70 | 228.6 | 1.56 |
| R050-UU-5/8×12 | 1.59 | 16.00 | 20.83 | 33.27 | 814.07 | 477.52 | 12.70 | 304.8 | 1.77 |
| R050-UU-3/4×6 | 2.36 | 19.05 | 26.16 | 38.10 | 546.10 | 355.60 | 15.75 | 152.4 | 1.86 |
| R050-UU-3/4×9 | 2.36 | 19.05 | 26.16 | 38.10 | 698.50 | 431.80 | 15.75 | 228.6 | 2.48 |
| R050-UU-3/4×12 | 2.36 | 19.05 | 26.16 | 38.10 | 850.90 | 508.00 | 15.75 | 304.8 | 2.98 |
| R050-UU-3/4×18 | 2.36 | 19.05 | 26.16 | 38.10 | 1155.7 | 660.40 | 15.75 | 457.2 | 3.64 |
| R050-UU-7/8×12 | 3.27 | 22.35 | 31.24 | 44.45 | 891.79 | 542.54 | 19.05 | 304.8 | 3.71 |
| R050-UU-7/8×18 | 3.27 | 22.35 | 31.24 | 44.45 | 1196.6 | 694.94 | 19.05 | 457.2 | 4.89 |
| R050-UU-1×6 | 4.54 | 25.40 | 33.27 | 52.32 | 627.89 | 424.69 | 22.35 | 152.4 | 4.62 |
| R050-UU-1×12 | 4.54 | 25.40 | 33.27 | 52.32 | 932.69 | 577.09 | 22.35 | 304.8 | 5.68 |
| R050-UU-1×18 | 4.54 | 25.40 | 33.27 | 52.32 | 1237.5 | 729.49 | 22.35 | 457.2 | 6.87 |
| R050-UU-1×24 | 4.54 | 25.40 | 33.27 | 52.32 | 1542.3 | 881.89 | 22.35 | 609.6 | 8.20 |
| R050-UU-1-1/4×12 | 6.89 | 31.75 | 47.24 | 71.37 | 1011.9 | 643.64 | 28.45 | 304.8 | 9.34 |
| R050-UU-1-1/4×18 | 6.89 | 31.75 | 47.24 | 71.37 | 1316.7 | 796.04 | 28.45 | 457.2 | 11.2 |
| R050-UU-1-1/4×24 | 6.89 | 31.75 | 47.24 | 71.37 | 1621.5 | 948.44 | 28.45 | 609.6 | 12.8 |
| R050-UU-1-1/2×12 | 9.71 | 38.10 | 57.15 | 71.37 | 1054.1 | 673.10 | 35.05 | 304.8 | 13.9 |
| R050-UU-1-1/2×18 | 9.71 | 38.10 | 57.15 | 71.37 | 1358.9 | 825.50 | 35.05 | 457.2 | 16.7 |
| R050-UU-1-1/2×24 | 9.71 | 38.10 | 57.15 | 71.37 | 1663.7 | 977.90 | 35.05 | 609.6 | 18.9 |
| R050-UU-1-3/4×18 | 12.7 | 44.45 | 66.04 | 85.85 | 1355.9 | 898.65 | 41.15 | 457.2 | 24.5 |
| R050-UU-1-3/4×24 | 12.7 | 44.45 | 66.04 | 85.85 | 1660.7 | 1051.1 | 41.15 | 609.6 | 28.7 |
| R050-UU-2×24 | 16.78 | 50.80 | 66.55 | 93.73 | 1766.3 | 1156.7 | 50.80 | 609.6 | 42.7 |
| R050-UU-2-1/2×24 | 27.32 | 63.50 | 77.72 | 112.78 | 1853.7 | 1244.1 | 57.15 | 609.6 | 74.8 |
| R050-UU-2-3/4×24 | 34.02 | 69.85 | 93.47 | 106.43 | 1898.6 | 1289.1 | 69.85 | 609.6 | 89.8 |
