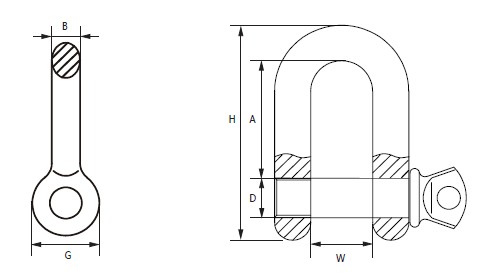

| 规格型号 | 额载（T） | （mm） | 自重 kg/ 只 | |||||
| W | D | A | B | G | H | |||
| R046-0.5T | 0.5 | 20±0.8 | 11±0.5 | 36.5 | 10 | 23 | 64 | 0.124 |
| R046-0.93T | 0.93 | 24±1 | 15±0.8 | 44.5 | 12 | 29 | 79 | 0.237 |
| R046-1.44T | 1.44 | 32±1 | 19±0.8 | 60.5 | 16 | 38 | 105 | 0.547 |
| R046-2.1T | 2.1 | 36±1.2 | 24±1 | 68 | 20 | 46 | 123 | 0.957 |
| R046-2.7T | 2.7 | 40±1.2 | 27±1 | 76.5 | 22 | 48 | 136 | 1.285 |
| R046-3.3T | 3.3 | 45±1.2 | 30±1 | 85 | 24 | 58 | 153 | 1.939 |
| R046-4.1T | 4.1 | 55±1.5 | 33±1.5 | 93.5 | 27 | 63 | 170 | 2.762 |
| R046-4.9T | 4.9 | 60±1.5 | 36±1.5 | 102 | 30 | 70 | 178 | 3.548 |
| R046-7.5T | 7.5 | 64±2.5 | 42±1.5 | 109 | 36 | 75 | 203.5 | 5.34 |
| R046-9.5T | 9.5 | 70±2.5 | 44±1.5 | - | 40 | 87 | - | 7.62 |
| R046-10.7T | 10.7 | 80±2.5 | 49±1.5 | - | 45 | 92 | - | 70.4 |
